Name: SawStop Contractor Table Saw CNS175-TGP236
SKU: 54767
Availability: InStock

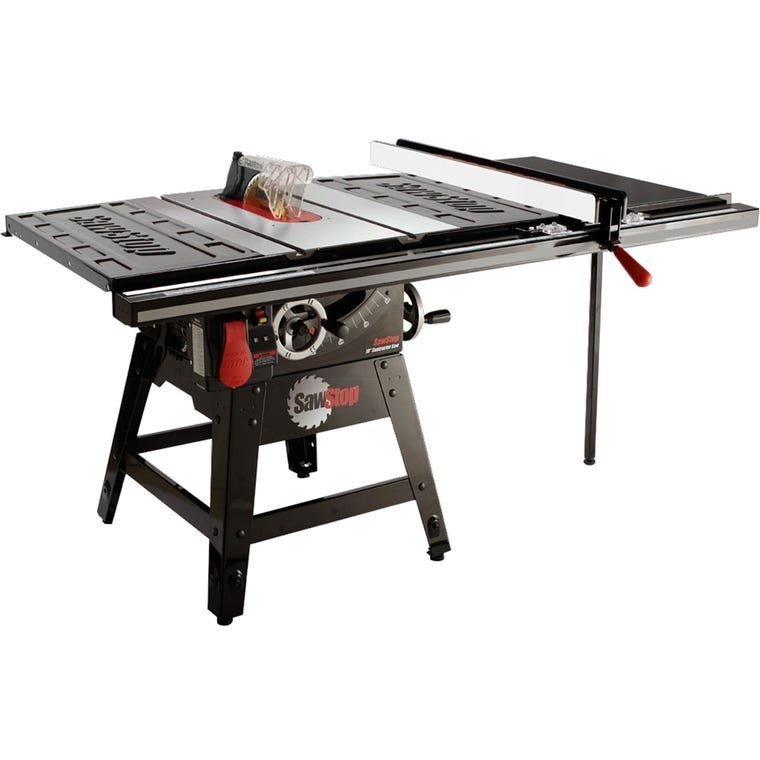

SawStop Contractor Table Saw CNS175-TGP236

SKU: 54767 Category: Chainsaw Tag: Chainsaw

The SawStop® 110V, 1.75HP 10″ Professional Contractor Saw is engineered to fit the unique demands of the avid hobbyist in a home setting. Delivering the peerless fit and finish of the Professional Cabinet Saw, this saw’s 110V power and optimized footprint make it ideal for the many challenges of a home shop. With SawStop’s® legendary safety system, uncompromising quality and industry-leading dust collection, the 110V Professional Contractor Saw is engineered to be the cornerstone of a home shop. Mobile base sold separately (#22948).

More Information
Brand	SawStop
Manufacturer Part Number	CNS175-TGP236
Tech Spec	Motor: 1.75 hp, 1 phase, 110 V, 14 A Weight: 225 lbs (table saw only) Max. rip, right of blade: 36″ Cabinet footprint: 19 3/8″W x 19 3/8″D Cast iron table: 20″W x 27″D, 44″W x 27″D (w/ extension wings) Stamped steel extension wing: 12″W x 27″D Blade: 40-tooth, professional grade, 5/8″ arbor Blade diameter: 10″ Blade tilt: Left Blade kerf: 0.118″ (3mm) Blade plate thickness: 0.078″ (2mm) Max. depth of cut, blade at 0°: 3-1/8″ Max. depth of cut, blade at 45°: 2-1/4″ Max. rip, left of blade: 12″ Dado diameter: 8″ (requires a separate brake cartridge and table insert) Dado max. width: 13/16″ Arbor diameter at blade: 5/8″ Main bearing size: 62mm OD x 30mm ID Second bearing size: 52mm OD x 25mm ID Table in front of blade (max. elevation): 10-1/4″ Table behind blade (max. elevation): 7-1/2″ Arbor runout: 0.001″ Maximum allowable runout Blade lateral movement over full elevation range: 0.006″ Maximum Table flatness measured diagonally: 0.010″ Maximum gap Overall table and extension wing flatness: 0.025″ maximum gap Blade alignment with miter slot: 0.010″ Maximum displacement Deviation of miter gauge indexing stops from actual: 0.25° Alignment between spreader and blade: 0.010″ Maximum difference Miter slots: T-shaped, 3/4″ at top, 1″ at bottom, 3/8″ deep Riving knife / splitter thickness: 0.078″ (2mm) Blade guard: polycarbonate, extends only 5/8″ to right of blade Insert: zero clearance, steel core, ABS surfaces Hand wheels: 7″ diameter, cast iron with chrome handle Belts: 2 V-ribbed belts – arbor belt is static dissipative
